DMC-650
DMC-650 is a specialized machine equipped with an ultrasonic machining system for processing brittle and hard material, replacing the traditional machines on the market that use diamond mounted points to process special material. In addition, using CVD single crystal diamond tools also has good result on B4C, SIC …and other materials.
Rotating ultrasonic machining exhibits many outstanding features:
• Ideal for machining brittle and hard materials
• Long tool life
• Superb cutting efficiency
Benefits

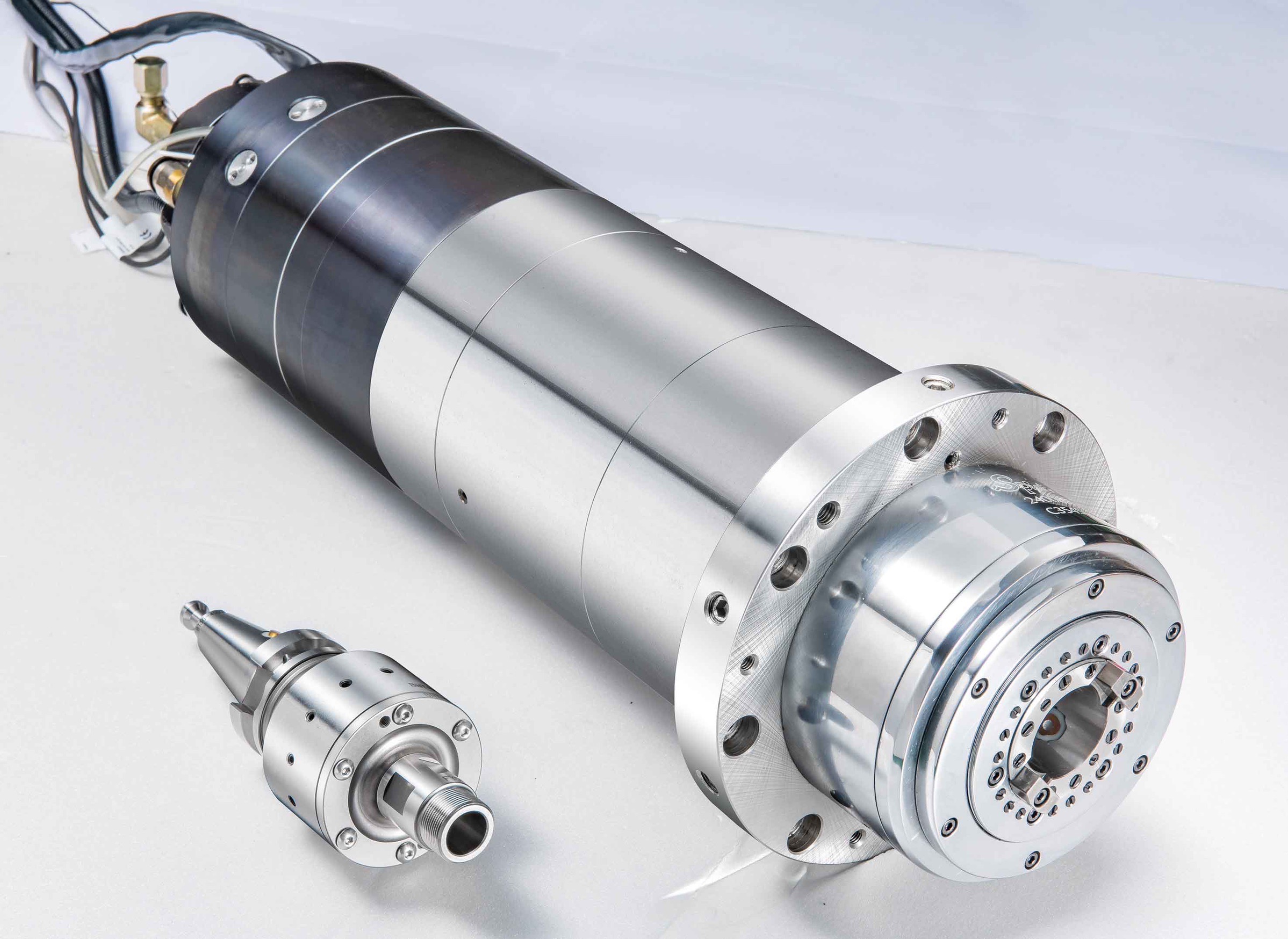

BENEFITS OF ULTRASONIC SPINDLE
• High frequency vibration machining features less drag force than that of conventional machining.
• The abrasive dust generated during high frequency vibration machining does not stick to the tool easily, thus the tool remains sharp and machining efficiency can be increased by 3-5 times.
• The workpiece is free of residual stress.
• It not only improves roughness on machining surface, but also extends the service life of the tool.
★ All specification, dimension and design characteristics shown in this catalogue are subject to change without notice.
DMC-650
DMC-650 is a specialized machine equipped with an ultrasonic machining system for processing brittle and hard material, replacing the traditional machines on the market that use diamond mounted points to process special material. In addition, using CVD single crystal diamond tools also has good result on B4C, SIC …and other materials.

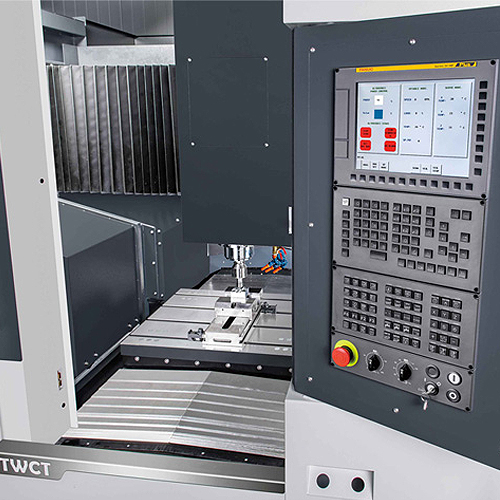

Product photos
Specification
DMC-650 規格
| MODEL | UNIT | DMC-650 |
| Right/1eft travel(X) | mm | 600 |
| Forward/backward travel (Y) | mm | 550 |
| Up/dowc travel (Z) | mm | 350 |
| Spmdle nose to table surface | mm | 150-500 |
AXES FEED RATES
DMC-650 規格(軸進給率)
| Screw specifications X,Y, Z -axis | mm/min | R40-8 |
| Screw traverse rates X,Y, Z -axis | mm/min | 20 |
| Cutting feed rate | mm | 1-10000 |
| Poitioning accuracy | mm | 0.003/300 |
| Repeatability accuracy | mm | 0.003 |
TABLE
DMC-650 規格(工作台)
| Tbble sizes | mm | 700 x 600 |
| Max. table load | kg | 300 |
| T-Slot | mm | 4T x 18 |
主軸
DMC-650 規格(主軸)〉
| spindle taper | BBT-30 / HSK E40（Optional） | |
| Spindle speeds | RPM | 24000 I 36000（Optional） |
| Spindle drive | Built-in type |
COOLING SYSTEM
〈DMC-650 規格(冷卻系統)
| Spindle cooling |
TOOL MAGAZINE
DMC-650 規格(刀庫系統)〉
| MODEL | UNIT | DMC-650 |
| Tool magazine type | Umbrella type, 16 tools | |
| Max. tool weight | kg | 3 |
| Max. tool length | mm | 200 |
| Max. tool dia. (fully loaded) | mm | 90 |
| Max. tool dia. (adjacent emptytool) | mm | 120 |
CONTROL SYSTEM
〈DMC-650 規格(控制系統)
| FANUC OIMF(TYPEl)(STANDARD) |
| FANUC 311{0PTION) |
| SIEMENS 828D (OPTION) |
MECHANICAL DIMENSIONS AND WEIGHT
DMC-650 規格(機械尺寸重量)
| MODEL | UNIT | DMC-650 |
| Machine weight | kg | 6500 |
| Machine dimensions (L x W x H) | mm | 2700 x 2200 x 2580 (L, W, H) |
Application
Brittle Hard Materials：Silicon, quartz, aluminum oxide, glass, graphite, oxidized indium tin alloy steel, compound semiconductor parts and high hardness steddls.
Machining Materials：Aluminum silicon carbide, zirconium dioxide, sapphire
and stainless steel.
Material：Zirconium dioxide
Hole diameter：0.4mm Ddpth：6mm
Catalog
Comparison of tool handle type and spindle type ultrasonics (English version)
ULTRASONIC HIGH SPEED GANTRY MACHINING CENTER (English version)
Accessories
| Standard Accessories | OPTIONAL EQUIPMENT |
|---|---|
| Fully endosed splash guard | Gresse lubrication system |
| Air conditioner for electrical cabinet | Avetomatica chip conveyor |
| Spindle oil cooler | Oil coolant separation device |
| Pressure relief type lubrication system | Oil mist collector |
| LED Work lamp | Linear scales on 3 axes |
| LED warninglamp | 6.Tool Measurement&Workpiece Measurement |
| Network interface (RJ45) | |
| Coolant system | |
| Chip flushing system for bed | |
| Automatic power offfunction | |
| Air blast device for machining | |
| Rigid tapping | |
| Coolant gun |
| STANDARD CONTROLLER | OPTIONAL CONTROL FUNCTION |
|---|---|
| FANUC 01-MF PLUS | Network transmission data server |
| 2.AICC2 | |
| Smooth tolerance control | |
| Acceleration control | |
| Selection of machining conditions |
